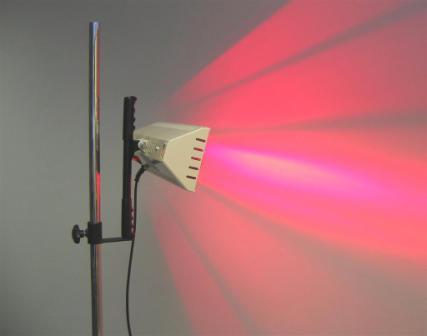

IR Heater Lamp Type JRTH-LP/1 Series

DESCRIPTION

Combining the features of a flexible hand held heater, with the benefits of a free standing curing system.
The JRTH-LP1000 Series is the ideal model to compliment any composite workshop.

Used with the stand, it also becomes an ideal additional heat source or spot curing / drying unit.

This model is intended for use on small repairs and drying jobs.

The JRTH-LP1000 Series comes ready fitted with the new 'GC' Powerslim lamp, offering the same high output as the full size models.

ADVANTAGES

  • Built-in isolating switch
  • Fitted with 300mm 1.0 KW GC Powerslim short wave tube
  • Pistol grip handle
  • Wide angle hi‑light reflector
  • 3m of flexible cable
  • Sturdy 6ft (1800mm) chrome plated stand
  • Full height 'slide and lock' cassette feature
  • Available as hand-held cassette or on a stand
  • Timer, Over Temperature Sentinel Controllers & Portable Heater Lamp Controller option



ORDER CODES / OPTIONS

  • JRTH-LP1000 -   Hand held model
  • JRTH-LP1000S -  Hand held model with separate stand
  • JRTH-LP1000T -  Two hand held models with one stand
  • JRTH-100100 - Adaptor Kit to convert the Type JRTH-LP1000S IR lamp from a hand-held system into bracket mounted

SPECIFICATION

  • Minimum static operating distance: 500 mm (when mounted on stand)
  • Dimensions: 400 mm x 140 mm x 85 mm

ELECTRICAL SPECIFICATION

  • 220/240 Volts 1 KW 50/60 Hz single phase - 4.25 Amps, part number JRTH-LP1000/230
  • 110/120 Volts 1 KW 50/60 Hz single phase - 8.5 Amps, part number JRTH-LP1000/110

  IR Heater Lamp Type JRTH-LP/1 Series



Compatible for use with our range of Timers, Over Temperature Sentinel Controllers (for more information follow this link Link to Timers and Over Temperature Sentinel Controllers) and Portable Heater Lamp Controller Type JRTHLC-1-110/240 (for more information follow this link Link to Timers and Over Temperature Sentinel Controllers)

To arrange a demonstration or for more information contact us.
